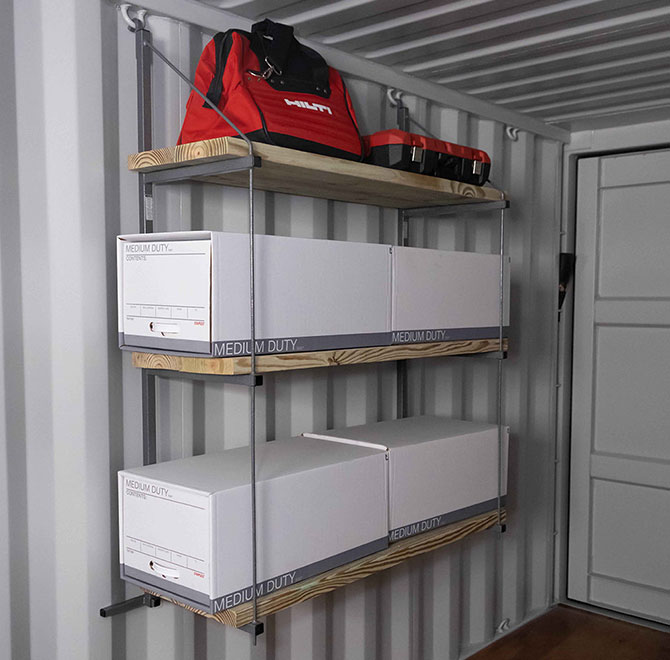

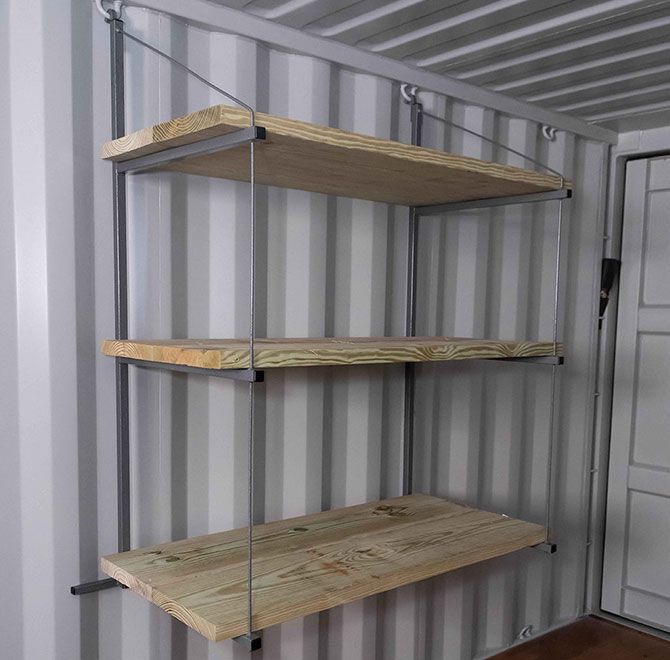

Three Shelves

The Three Shelf Models provide a top shelf storage height of 17″, middle shelf storage height of 18-1/2″, and a bottom shelf storage height of 22″. The Three Shelf Models provide approx. 31 inches of clear space under the lowest shelf.

Two brackets minimum required to make one unit.

Shelf Depth 14-1/2" 18-1/2" 22-1/2"
Lumber Req'd (Total) (6) 2x8s (6) 2x10s (6) 2x12s
Model 3208 3210 3212
Shelf Load Capacity w/2 Brackets 2400 lbs 2200 lbs 2000 lbs
Shelf Load Capacity w/3 Brackets 3600 lbs 3300 lbs 3000 lbs
Shelf Load Capacity w/4 Brackets 4800 lbs 4400 lbs 4000 lbs
Price per Bracket $175.00 $180.00 $195.00

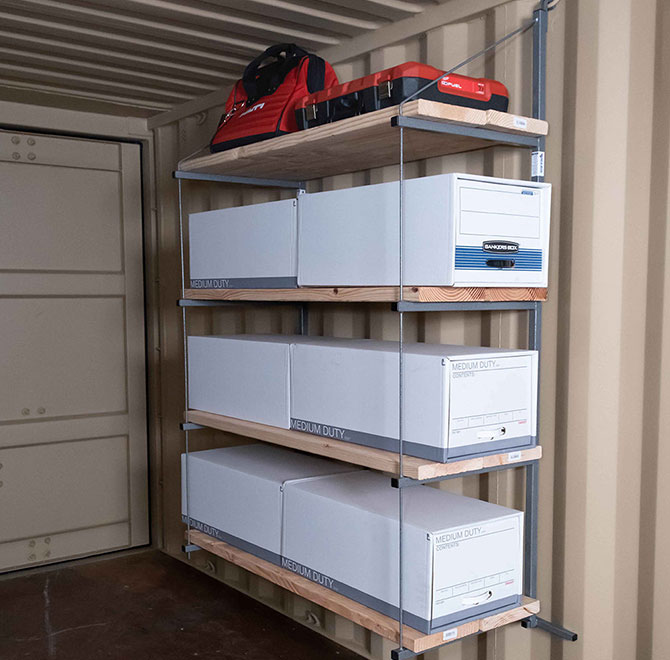

Four Shelves

The Four Shelf Model provides five equal height storage spaces (four shelves and the floor). This model provides approximately 17 inches of space on each shelf and on the floor under the lowest shelf.

Two brackets minimum required to make one shelving unit.

Shelf Depth 18-1/2"
Lumber Req'd (Total) (8) 2x10s
Model 4210
Shelf Load Capacity w/2 Brackets 2000 lbs
Shelf Load Capacity w/3 Brackets 3000 lbs
Shelf Load Capacity w/4 Brackets 4000 lbs
Price per Bracket $195.00

* Board length is determined by the user. Evaluation of load versus board strength must be made by the user prior to application of loads.
* Standard structural construction grade lumber sizes are given.
* Please note that the top shelf must be installed prior to use with any other shelf.
* Pressure Treated Lumber is NOT Recommended.
